EnGenius EAP300 11b/g/n 300Mbps Indoor Wireless Ethernet Access Point/WDS

EAP300 offers a "smoke detector" look, and is a high-powered (up to 29dBm) wireless-n access point / WDS Bridge / WDS AP that operates seamlessly in the 2.4GHz frequency spectrum supporting 802.11 b/g/n standard high speed feature. It is the best way to add long range wireless capability to your existing wired network or to add bandwidth to your wireless installation.

EAP300 features high wireless output power and receive sensitivity along with antenna diversity. High output power and high sensitivity extend wireless coverage to reduce the roaming between access points and to provide a reliable wireless connection. It also reduces the total cost of ownership on hardware.

To protect your wireless connectivity, it can encrypt all wireless transmissions through 64/128bits WEP data encryption and also supports WPA/WPA2. The MAC address filtering lets you select exactly which stations should have access to your network. In addition, the user isolation function can protect the private network between client users. The attractive design, high performance and array of features make the EAP300 a suitable wireless solution for your residence or office.

Brand

EnGenius

Model

EAP300

Standards

IEEE 802.11b/g/n

Wireless Data Rates

Up to 300Mbps

• WEP Encryption - 64/128 bit
• WPA Personal (WPA-PSK using TKIP or AES)
• WPA Enterprise (WPA-EAP using TKIP)

Security

WPA/WPA2

WPA

              2.4GHz - 2.484GHz

Frequency Band

Channels

11 Channels

• Embedded omnidirectional antenna (Diversity support)
• Antenna Gain = 5 dBi

Antenna

• 802.11b (2.412 ~ 2.472 GHz) best = -90 dBm
• 802.11g (2.412 ~ 2.472 GHz) best = -88 dBm
• 802.11n (2.412 ~ 2.472 GHz) best = -85 dBm

Receiver Sensitivity

• OFDM: BPSK, QPSK, 16-QAM, 64-QAM
• DBPSK, DQPSK, CCK

Modulation

Interface

Ethernet Port

Ports

1 x 10/100M

• HIGH POWERED AMPLIFIER, LONG-RANGE WI-FI
• Up to 29dBm RF Tx power provides greater Wi-Fi coverage over mainstream competitors

• AESTHETIC DESIGN

• Multiple BSSID
• Supports up to 4 BSSIDs with blocking SSID broadcast and wireless encryption 64/128-bit WEP, WPA/WPA2

• SSID TO VLAN MAPPING
• Supports 802.1q mapping of SSIDs up to 4 VLANs

• 802.3af PoE Compatible
• Supports Power over Ethernet (IEEE 802.3af) and allows deployment in areas where power outlets are not available

• INTEGRATED ANTENNA
• Internal 5dBi omnidirectional antenna with optimized configuration and RF performance

Features

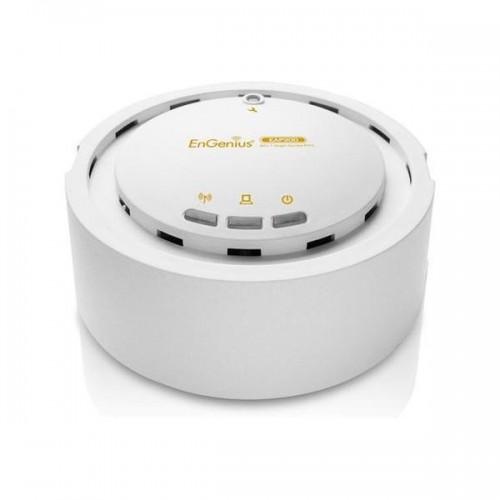

"Smoke Detector" housing – Unobtrusive design supports easy mountable to wall and ceiling tile (accessories included)
